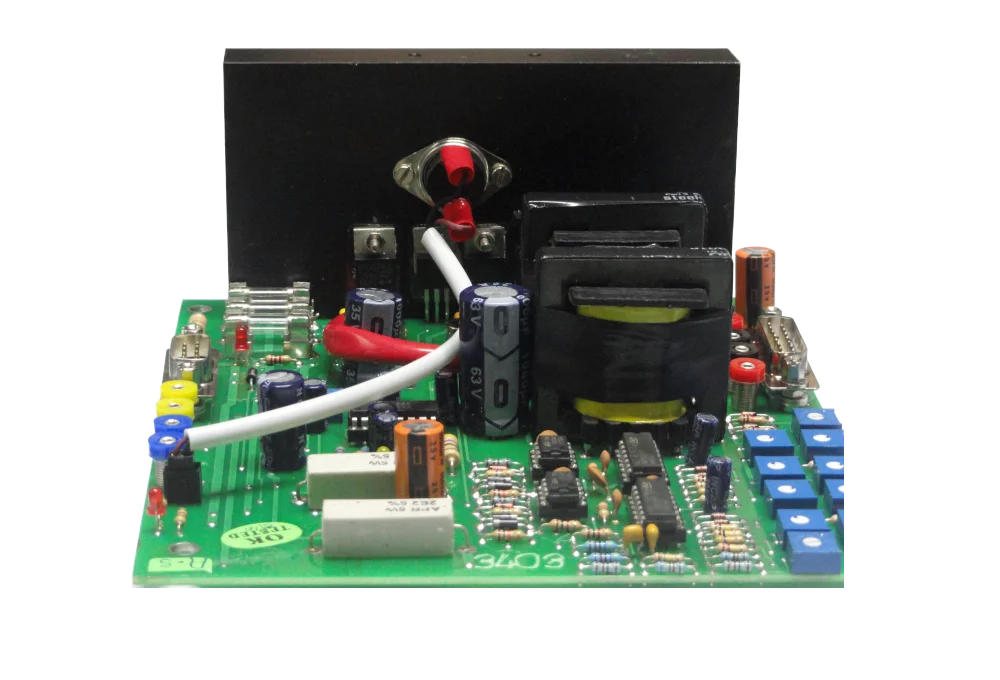

Universal Amplifier Card

So versatile that even competition uses it!

Product Details

Tritek UNIVERSAL AMPLIFIER has been specially designed to interface with a wide range of electro-proportional hydraulic valves. It has got 2 channels (normally used for pressure and flow coils). But it can also be used for controlling 2 pressure coils or 2 flow coils or even single pressure or flow coil.

Core Facts
  • Power Input
    +24V DC ±10%
  • Signal Input
    0 to +10V DC
  • Output Current
    0 to 800 mA across 10 to 43.5 Ohm Coil
  • Dither Frequency
    90 to 120 Hz Fixed
  • Dither Amplitude
    0 to 25 % full scale fixed
  • Operating Temperature
    0° to 45° Celsius ambient
Download the manual for more details.

To start using our Universal Amplifier Now!
