Product Details

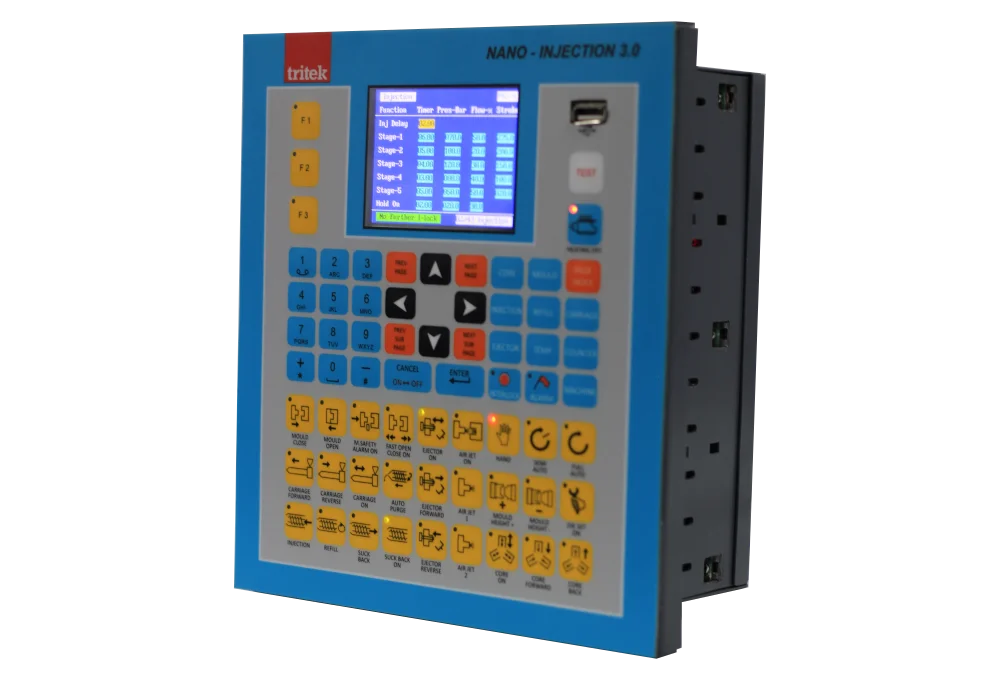

Cost Effective Single Box solution with full feature keyboard.

Key Features

• Dedicated Keys for all Injection Moulding Functions
• Proven Nano PLC with Bigger Keyboard
• Can interface with Two Linear Scales
• Inbuilt Amplifier for Proportional Pressure

PLC Core Facts

• Digital Inputs

  16 or 24 (NPN or Contact)
• Digital Outputs

  16 or 32 (24V DC 1.5A)
• Thermocouple IP

  6 ( J Type, Ungrounded )
• Analog Outputs

  Optional, 4 (0-10V)
• Proportional Outputs

  Inbuilt Pressure Coil Amplifier (Optional)
• Linear Pot Inputs

  2 (Optional)
• InfraRed Heater Control

  Voltage or Integral Cycle
• Programme Update

  USB Pen Drive
• External Connectivity

  RS-232 Serial
• Power Input

  24V DC
• Size

  192 x 96 x 220 mm
