Nano Series

Tritek Work Horse

Product Details

Versatile PLC for Injection, Blow and PET Moulding Machines. The A Series PLCs offer you terrific value and features. Based on latest 32 Bit ARM Microcontroller, it offers extremely high reliability.

Key Features
  • Single Box Cost Effective Controller with inbuilt HMI
  • Same Proven circuit Available in 3 forms. Nano PET, Nano 2.0 and Nano 3.0
  • Dedicated Keys for Manual Operations
  • Can be coupled with many external HMIs
  • Each system with Unique Serial Number and Passcode
Core Facts
  • Digital Inputs
    16 or 24 (NPN or Contact)
  • Digital Outputs
    16 or 32 (24V DC 1.5A)
  • Thermocouple IP
    6 ( J Type, Ungrounded )
  • Analog Outputs
    Optional, 4 (0-10V)
  • Proportional Outputs
    Inbuilt Pressure Coil Amplifier (Optional)
  • Linear Pot Inputs
    2 (Optional)
  • InfraRed Heater Control
    Voltage or Integral Cycle
  • Programme Update
    USB Pen Drive
  • External Connectivity
    RS-232 Serial
  • Power Input
    24V DC
  • Size
    192 x 96 x 220 mm

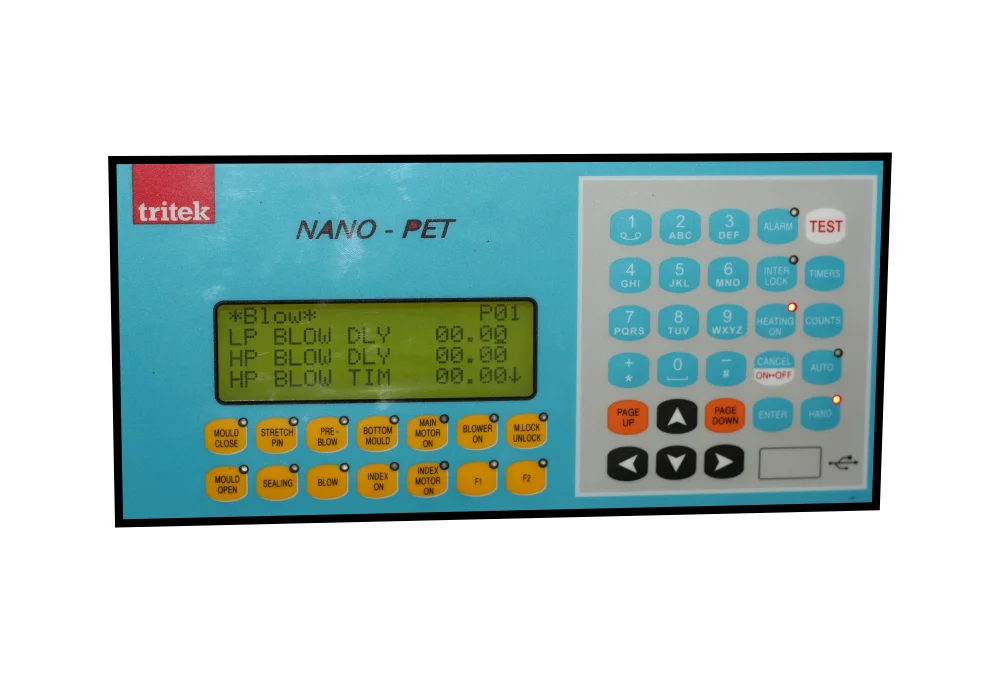

Nano PET

Key Features
  • Dedicated Microcontroller for Automatic PET Stretch Blow Moulding Machine
  • 2 Options of Heater Control (Integral Cycle Control or Phase Angle Control)
  • Soft Start for Long Heater Life
  • Thermocouple Input for Oven Temperature
  • PWM Output for Drive
  • Extensive Diagnostics, Counters and Hour Meters

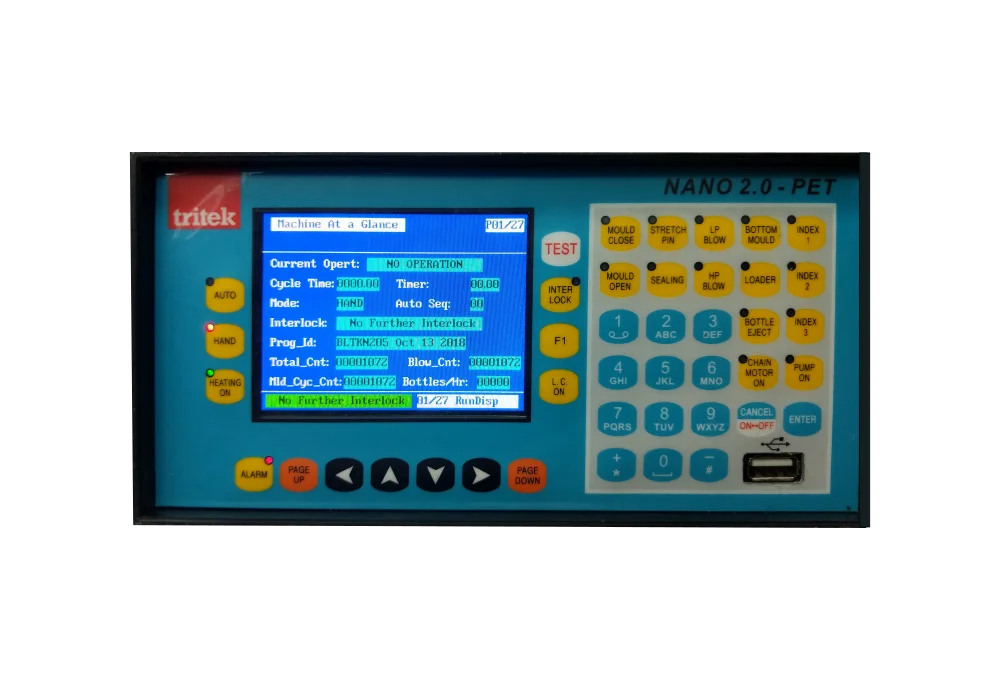

Nano 2.0 (Nano with 3.5" TFT Display)

Key Features
  • 3.5" Colour Screen HMI with dedicated manual function Keys
  • Specially designed Keyboards for Injection, Blow and PET machines
  • Provision for 4 Analog Outputs for Proportional Hydraulics
  • Voltage or Cycle Control for Infrared Heaters (for PET Machines)

CONTACT US to start using Nano PLC Now
