Product Details

Great Versatility at Micro Cost. This is a highly popular series of Tritek. Extensively used by many OEMs.

Key Features

• Multilayer technology for CPU Cards
• Compact yet Modular Card Rack design

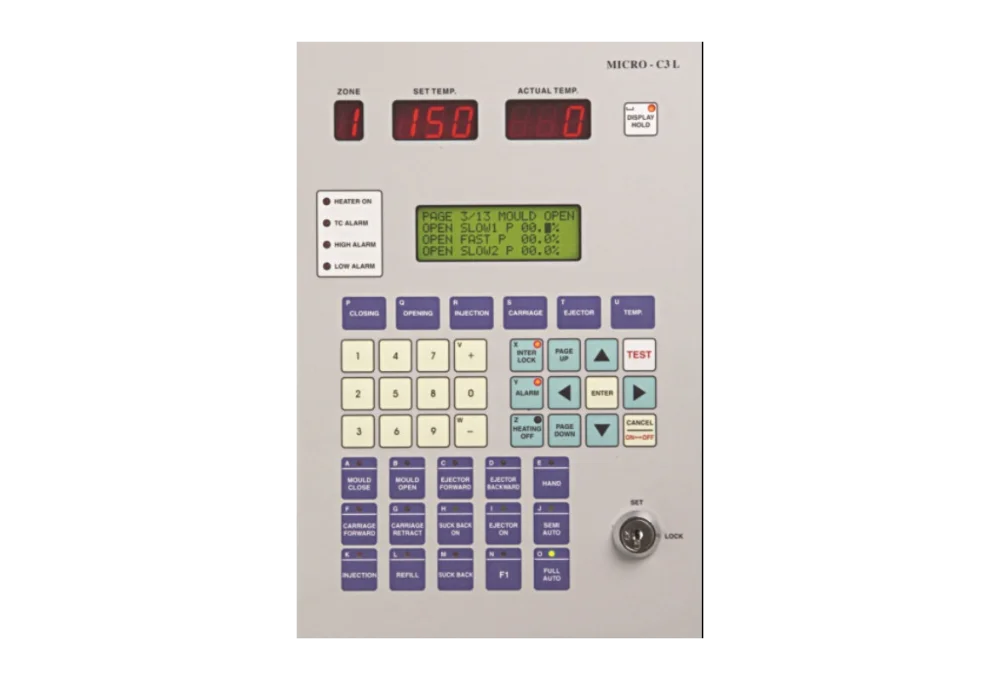

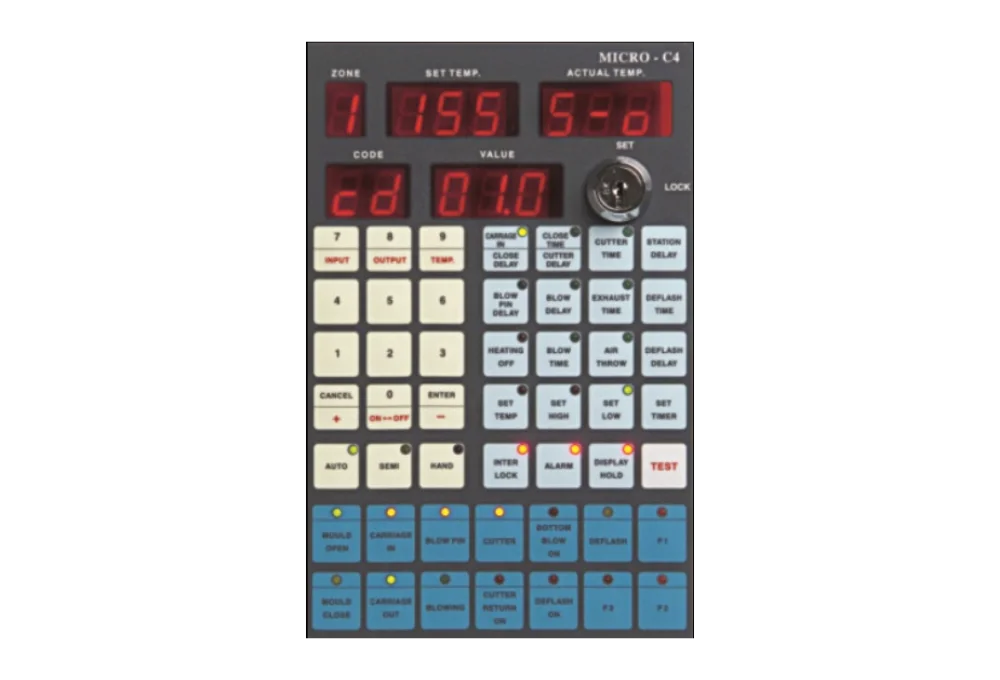

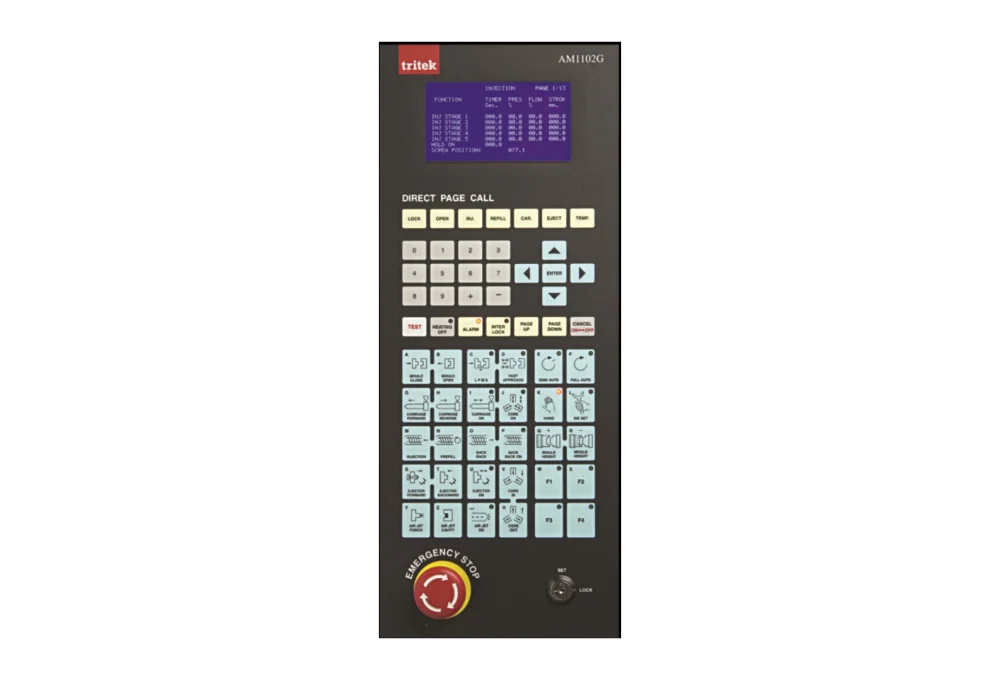

• 3 different user interfaces. (12 Line LCD, 4 Line LCD or LED Display).
• Mould memory of 20 to 50 moulds
• Parameter storage in EEPROM. (Permanent Memory. Not dependant on Battery)

PLC Core Facts

• Digital Inputs

  16 (NPN or Contact)
• Digital Outputs

  16 to 32 (24V DC 1.5A)
• Thermocouple IP

  6 ( J Type, Ungrounded )
• Analog Outputs

  2 to 4 (0-10 V)
• Amplifier Circuit for Pressure and Flow

  4 Channels can be connected externally
• Power Input

  230V ±10% AC
• Size

  19 Inch 4U CardRack with 200mm Depth
• Maximum Ambient

  45°C
